BULLSEYE BAGGER AUDIO

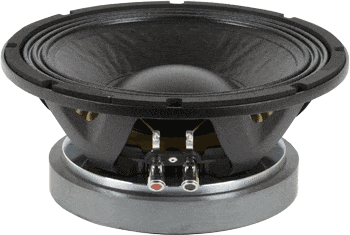

beyma 10ix speaker

beyma 10ix speaker

Regular price $400.00 USD
Regular price Sale price $400.00 USD
Sale Sold out

Specifications

Nominal Basket Diameter

10" / 250mm

Impedance

8 ohms / 4 ohms

AES Power Rating

500 Watts

Program Power  1,000 Watts

Frequency Response

40Hz - 3.3kHz

Sensitivity (1W/1m)

90dB

Voice Coil Diameter

3" / 76.2mm

Voice Coil Length 30 mm
Air Gap Height 8 mm
X Damage (peak to peak) 49 mm
BL Factor 19 N/A

Mounting Information

Overall Diameter 10.3" / 261mm
Bolt Circle Diameter 9.6" / 243.5mm
Baffle Cutout Diameter-
- Front Mount 9" / 228mm
No. Of Mounting Holes 8
Overall Depth 5.2" / 133mm
Net Weight 18.3 lb. / 6.8 kg.
Shipping Weight 16 lb. / 7.25 kg.

Materials

Basket Die Cast Aluminum
Cone Paper
Surround Rubber
Voice Coil Edgewound Copper Wire
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 41 Hz
Impedance (Re) 6.8 ohms
Coil Inductance (Le) 1.0 mH
Mechanical Q (Qms) 8.1
Electrical Factor (Qes) .46
Total Q (Qts) .43
Comp. Equivelant Vol. (Vas) 1.15 ft3 / 32.5 Liters
Voice Coil Overhang (Xmax) 13.0 mm
Moving Mass (Mms) 95 Grams
Surface Area of Cone (Sd)m2 0.038
Reference Efficiency .5%
Displacement Volume (Vd) 505 cm3
